Introducing Capacitor Contactor CAP Series
Published on May 11, 2026
The CAP Series offers 3-pole contactors rated 25A–115A, supporting 12–60kVar at 400VAC. Featuring 230VAC coil, auxiliary contacts, and 690V insulation, it provides 100,000 electrical and 1 million mechanical cycles. Mountable on 35mm DIN rail or panel with screw clamp terminals, delivering robust capacitor bank control for industrial applications.

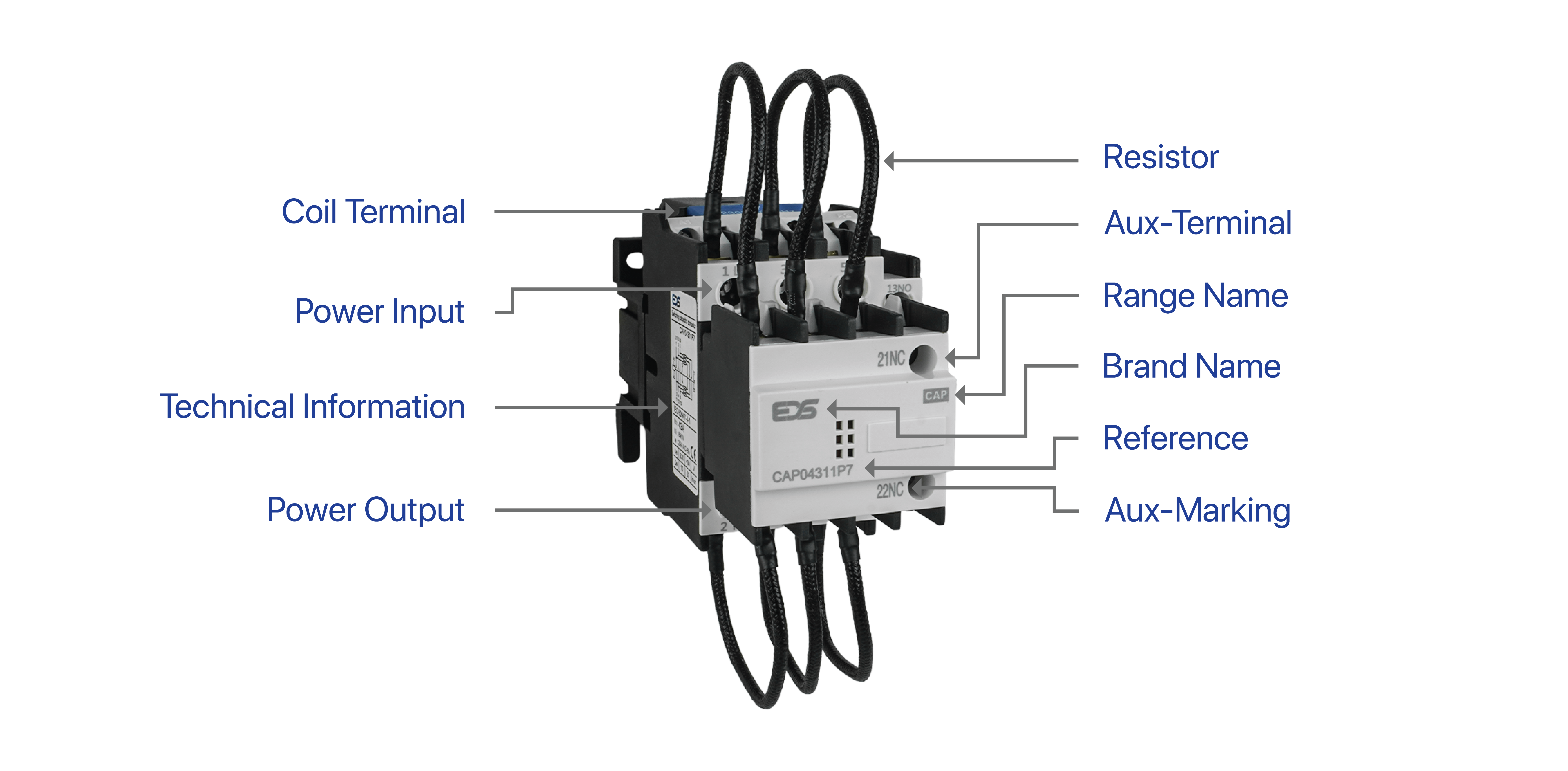

See Complete Product Range →Product Information

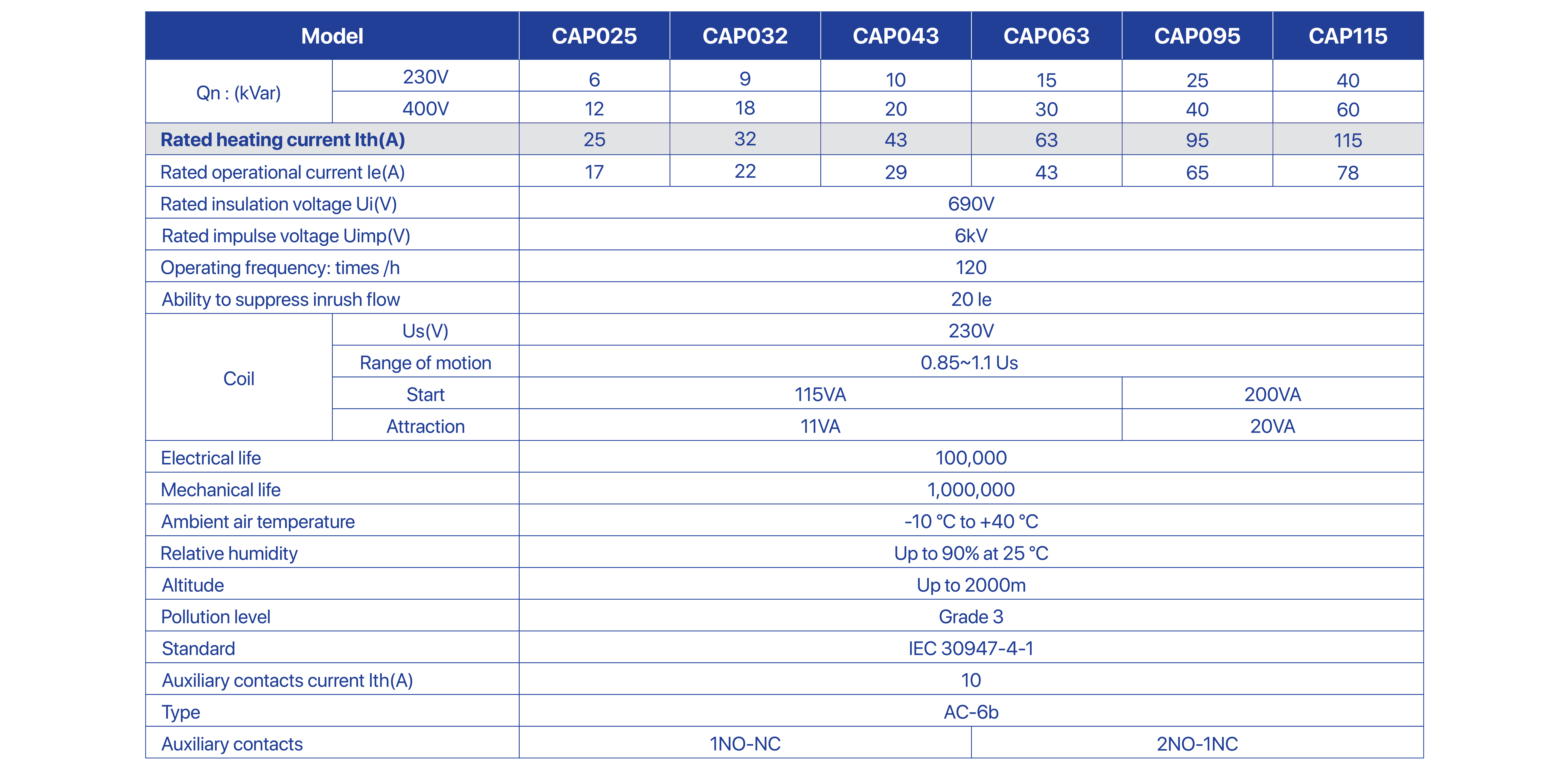

Technical Data
Applications
Designed for switching low-voltage capacitor banks (up to 400V, 50Hz)
Reduces inrush current and switching overvoltage
Improves power factor and system efficiency
High inrush current suppression (up to 20× Ie)
Compact, reliable design with long lifespan
