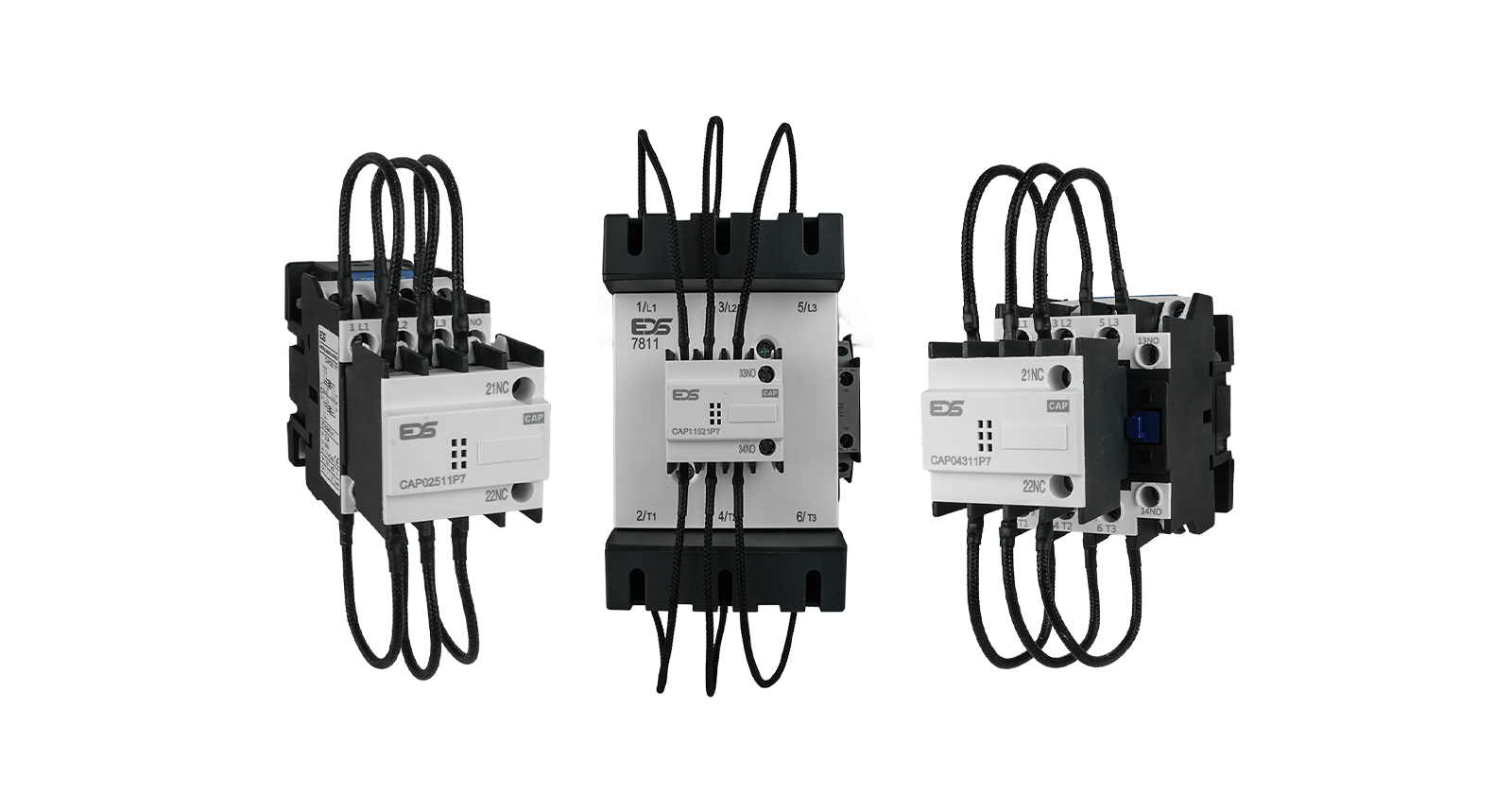

Capacitor Contactor CAP
High-Performance 3-Phase Switching for Power Factor Correction Systems
The CAP Series offers 3-pole contactors rated 25A–115A, supporting 12–60kVar at 400VAC. Featuring 230VAC coil, auxiliary contacts, and 690V insulation, it provides 100,000 electrical and 1 million mechanical cycles. Mountable on 35mm DIN rail or panel with screw clamp terminals, delivering robust capacitor bank control for industrial applications.
Capacitor Contactor CAP
Switching Capacitor Contactor 12 kVAr 3P-25A 1NO+1NC
CAP02511P7
Switching Capacitor Contactor 18 kVAr 3P-32A 1NO+1NC
CAP03211P7
Switching Capacitor Contactor 20 kVAr 3P-43A 1NO+1NC
CAP04311P7
Switching Capacitor Contactor 30 kVAr 3P-63A 2NO+1NC
CAP06321P7
Switching Capacitor Contactor 40 kVAr 3P-95A 2NO+1NC
CAP09521P7
Switching Capacitor Contactor 60 kVAr 3P-115A 2NO+1NC
CAP11521P7
