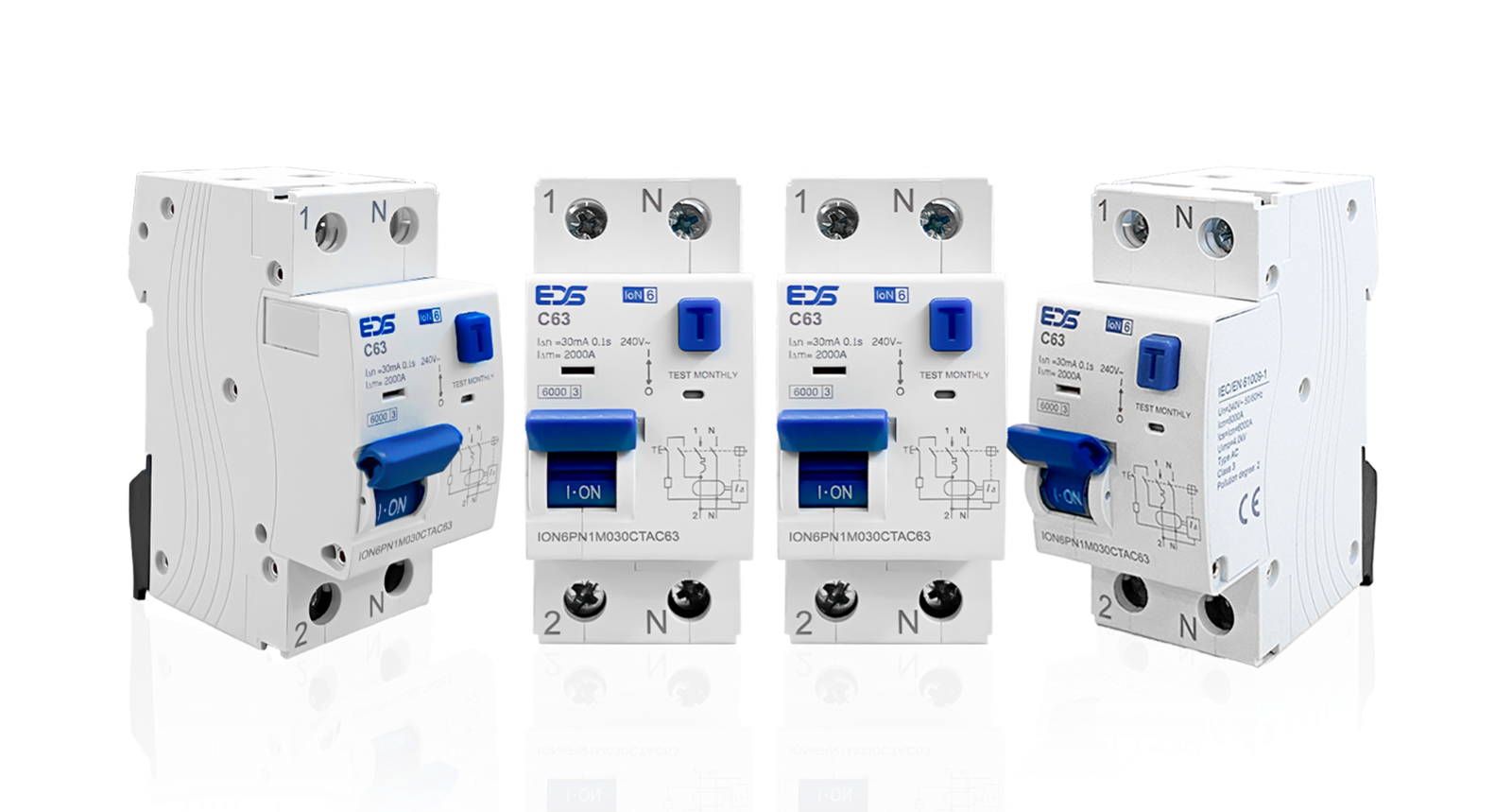

Residual Current Circuit Breaker with Overcurrent Protection IoN6

Comprehensive Protection Against Leakage and Overcurrent

The IoN6 Series RCBO provides 1P+N protection with sensitivity options 30, 100, and 300mA (C Curve) and rated currents 10–63A, ensuring fast tripping for ground faults while safeguarding circuits from overload and short-circuits. Compliant with IEC/EN 61009-1, the RCBO supports 6000A breaking capacity, ≤0.1s tripping time, mechanical endurance of 6000 operations, and pillar clamp terminals up to 16mm², offering compact, safe, and reliable DIN-rail mounting.
