Introducing Load Isolator Switch 3P SwiFT Series
Published on April 03, 2026
The SwiFT Series features back plate mounting for straightforward installation and is built to withstand impact voltages up to 10kV in higher ratings. With proven reliability through extensive mechanical endurance testing and compact dimensions, these isolator switches are perfect for electrical distribution systems, motor control centers, and industrial machinery requiring safe and dependable load isolation.

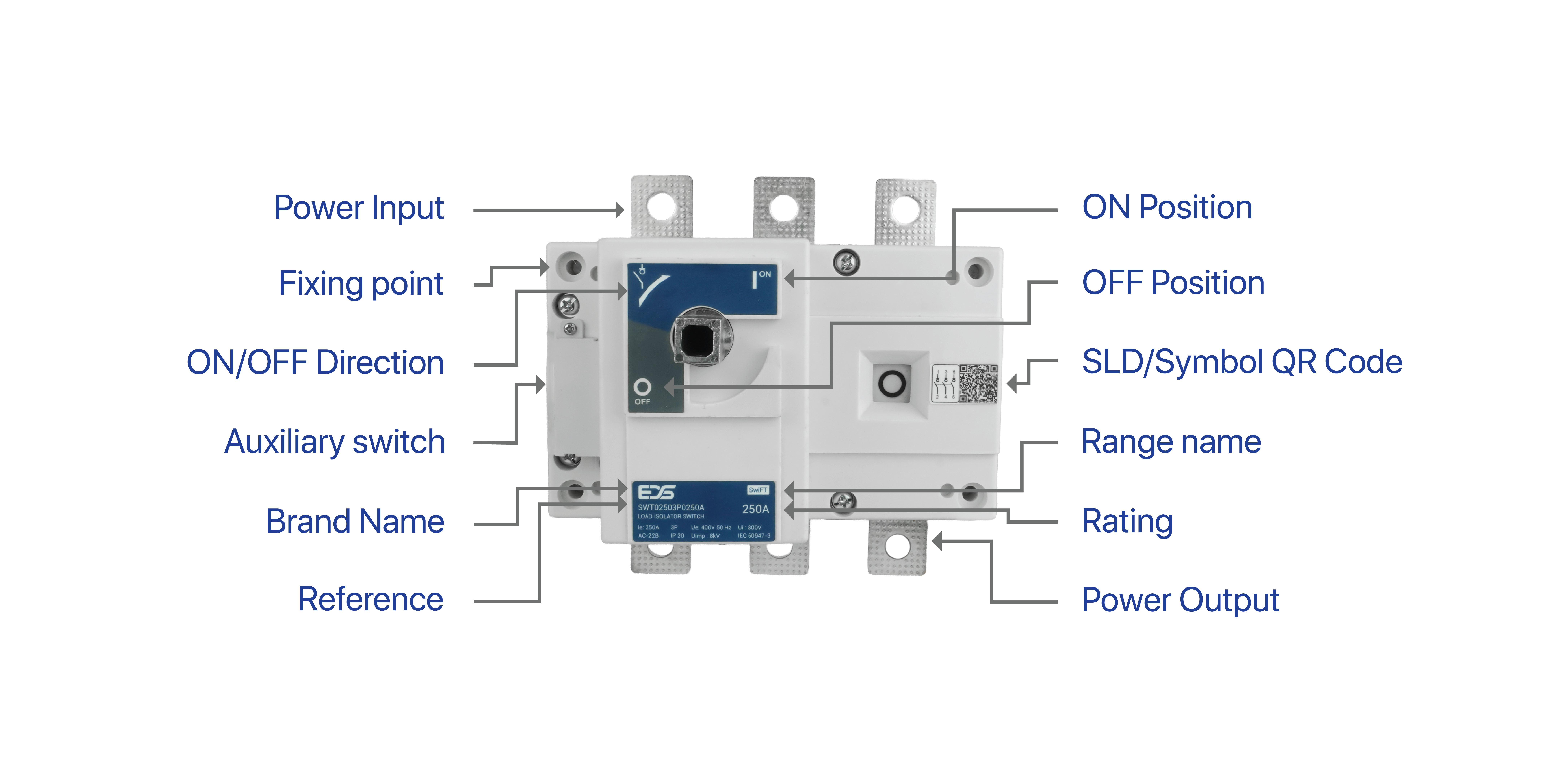

See Complete Product Range →Product Information

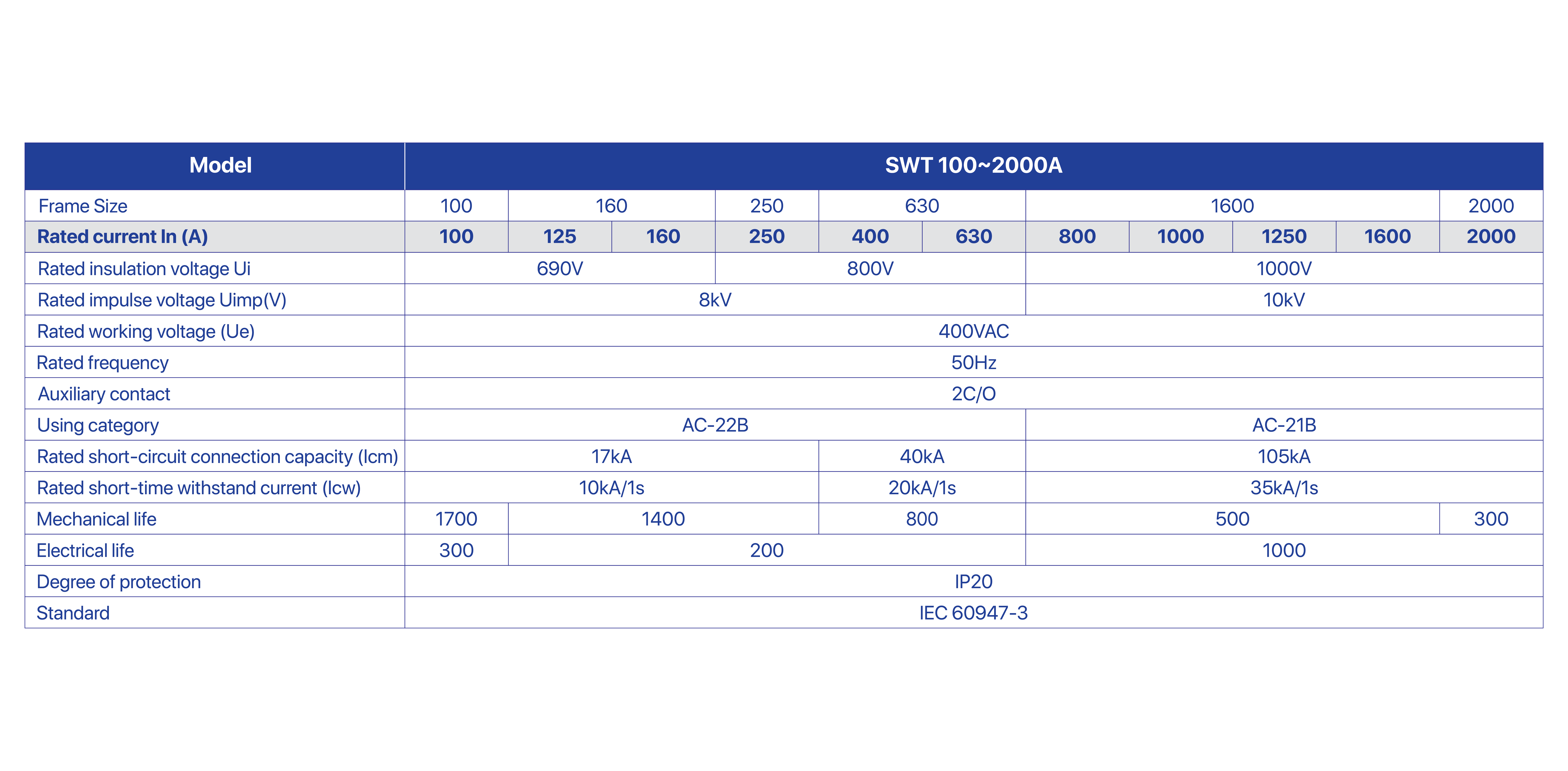

Technical Data

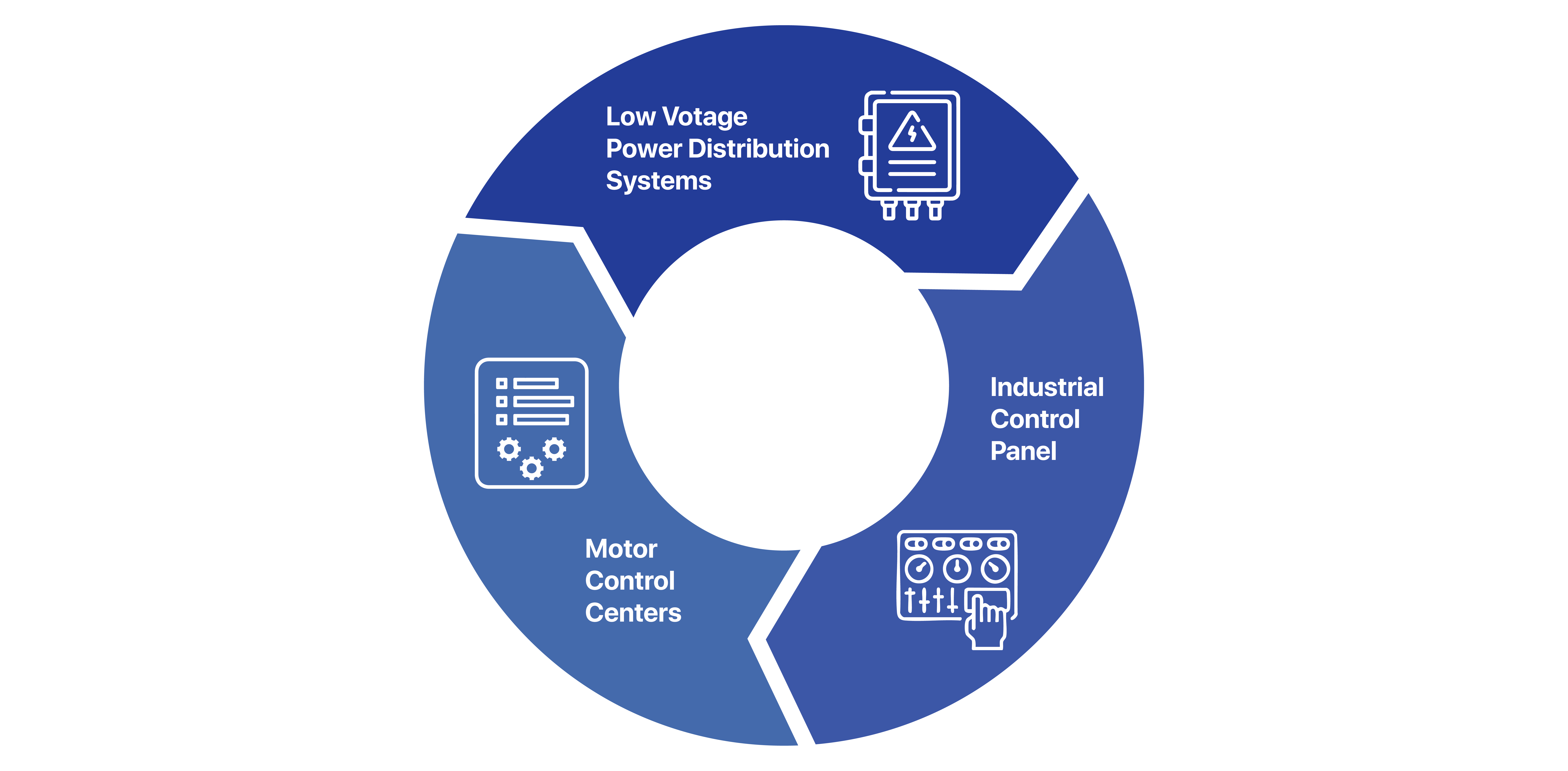

Applications
Designed for safe isolation and infrequent circuit switching
Suitable for AC (50Hz) up to 660V (690V) and DC up to 440V, with 100A–2000A range
Instant trip mechanism ensures fast, reliable operation (independent of handle speed)
Front marking window clearly shows
contact status for easy visual confirmation
Supports 2C/O auxiliary contacts for flexible applications
Lockable OFF position (0) with 2–3 padlocks for enhanced safety
