Introducing Automatic Transfer Switches AuToX Series
Published on March 25, 2026
The AutoX Series offers flexible installation with back plate mounting and versatile terminal connections including lug type and busbar options. With rated insulation voltage of 690V and control voltage of 220~240VAC, these transfer switches are ideal for commercial facilities, data centers, hospitals, and industrial applications requiring dependable backup power switching.

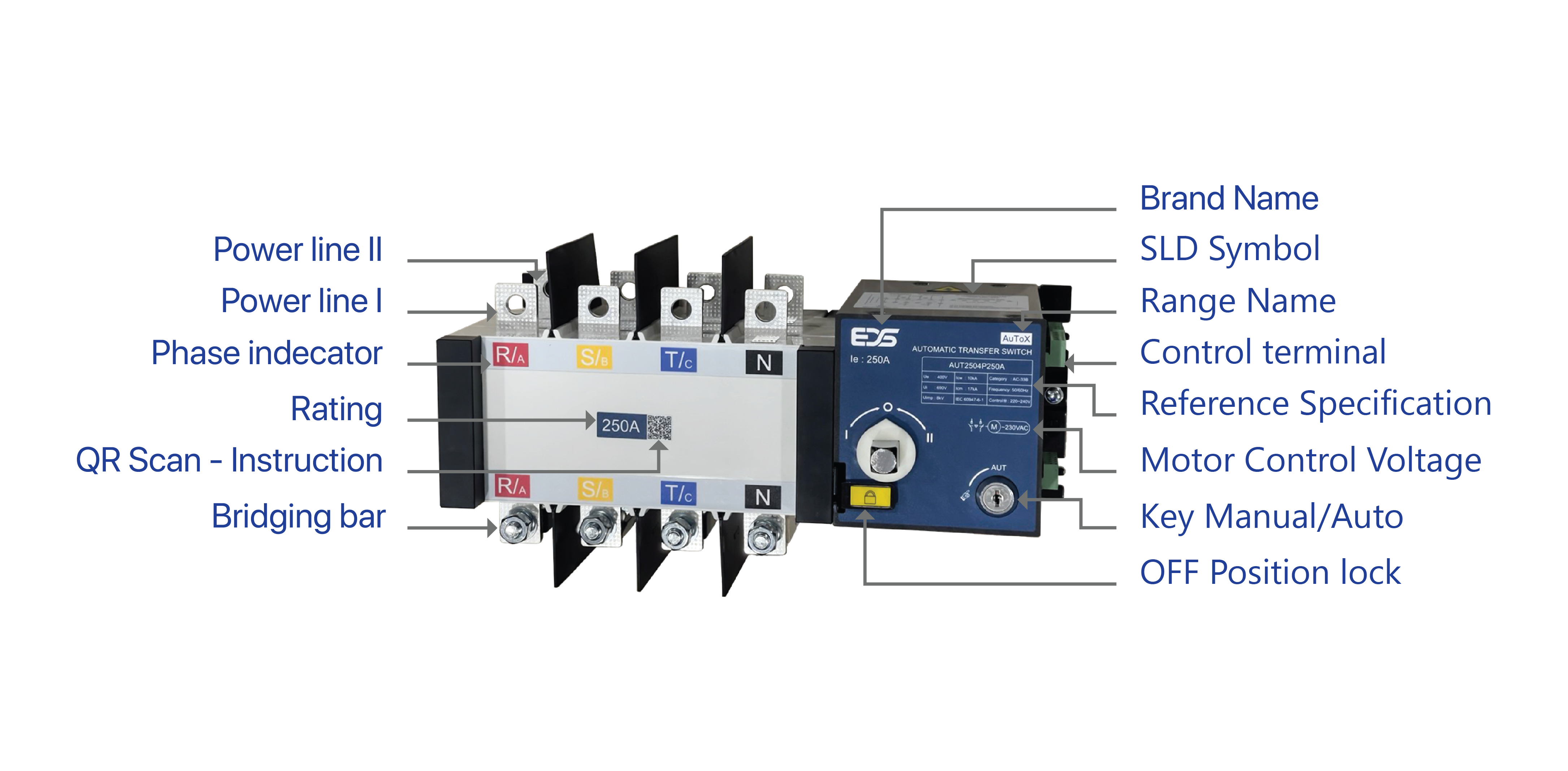

See Complete Product Range →Product Information

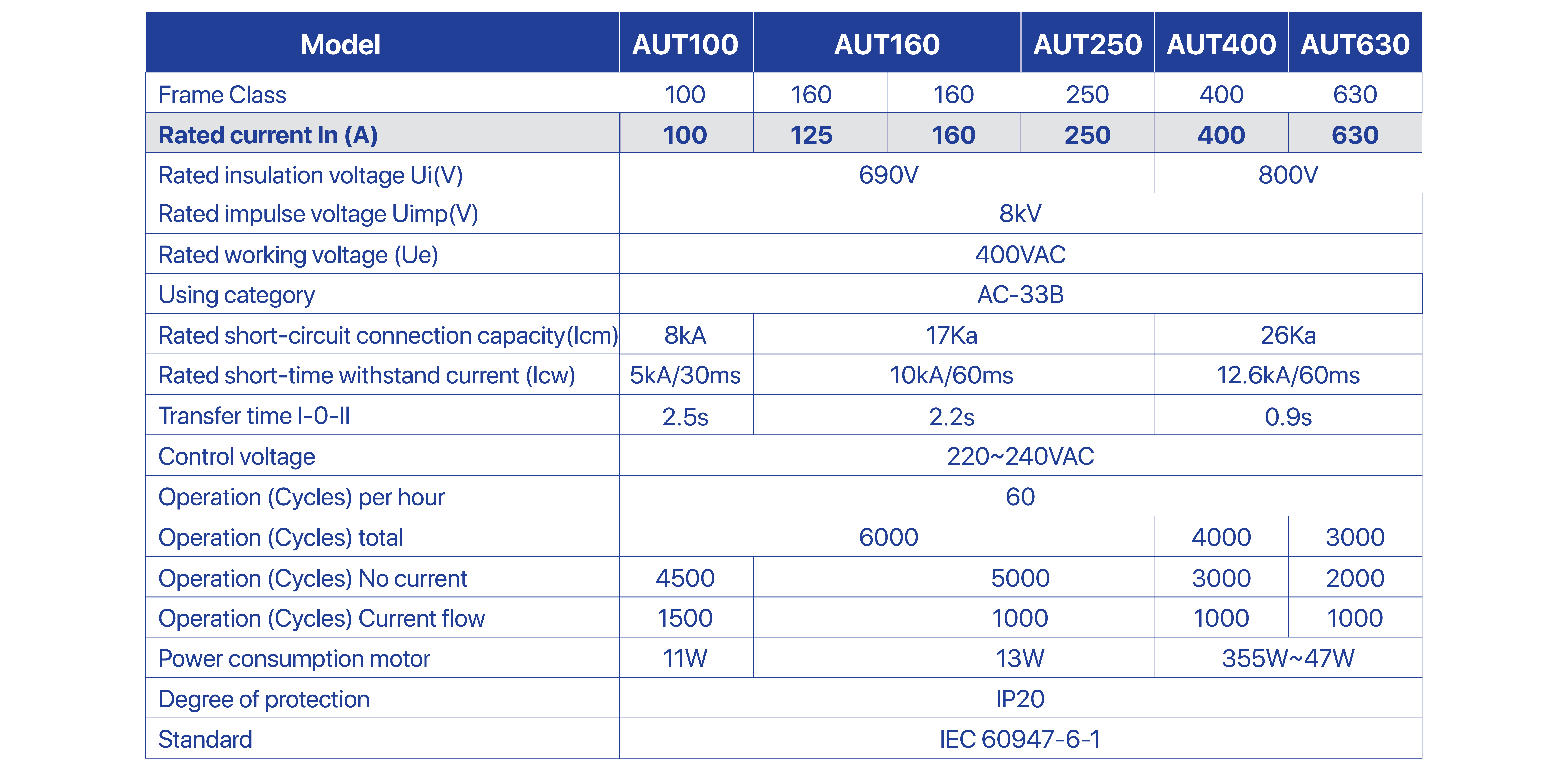

Technical Data

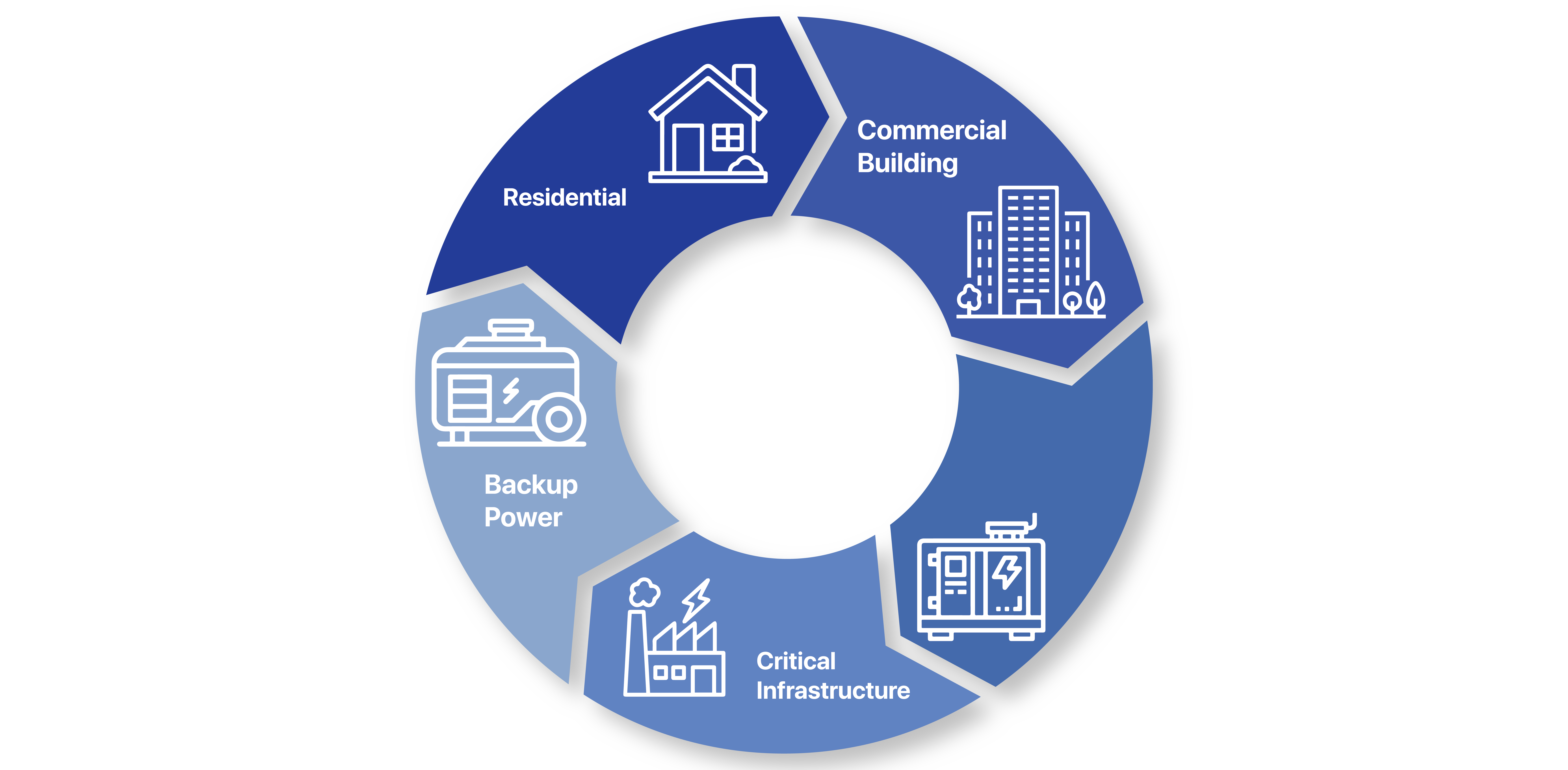

Applications
Automatic & Manual Operation: Seamless main-to-generator transfer
4P Safe Switching: Neutral included, interlocked, I-0-II
Fast Transfer: 0.9s / 2.2s / 2.5s
220–240VAC Control: Standard voltage
Easy Installation: 2-in/2-out, clear terminals

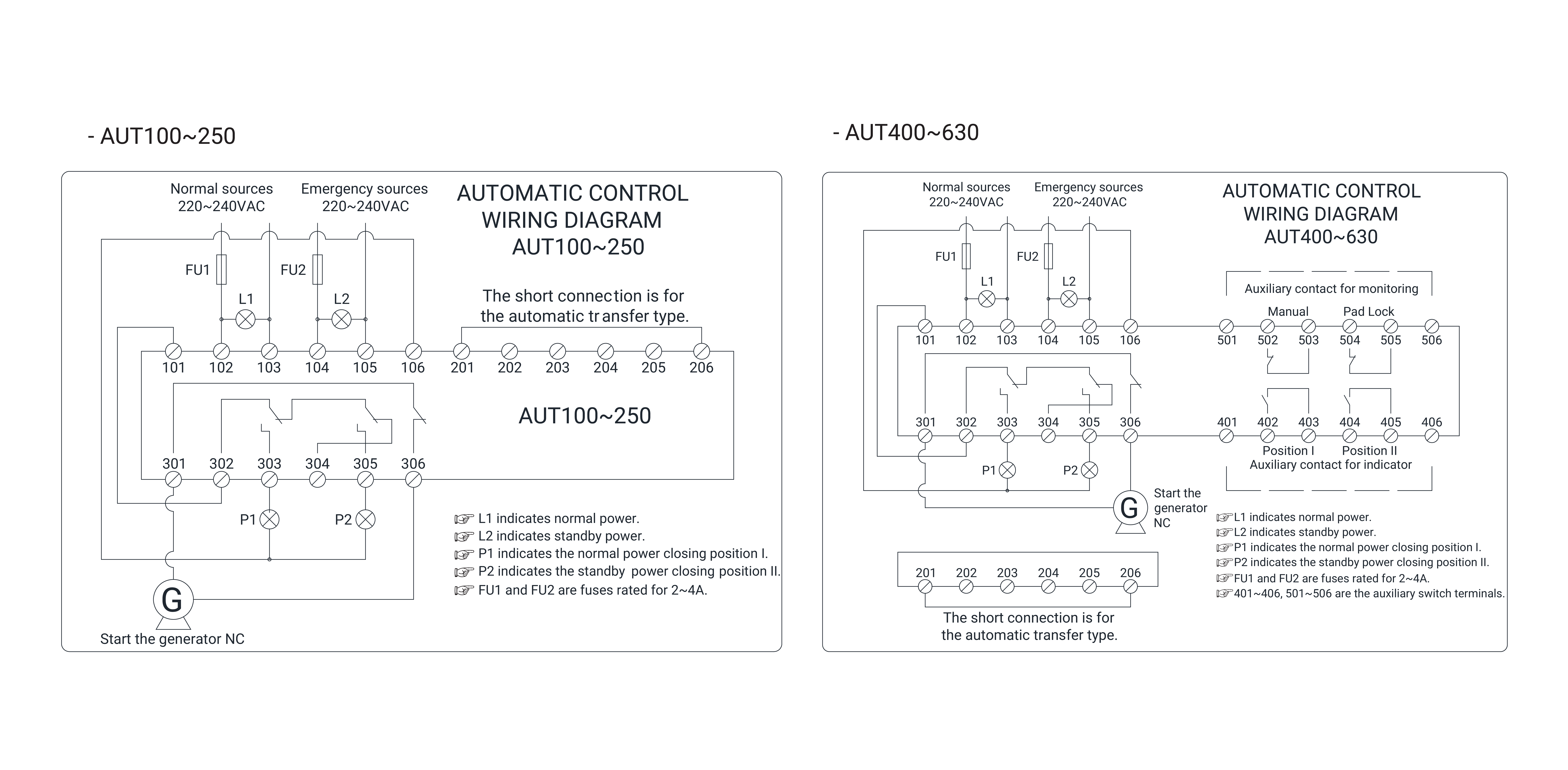

Installation Diagram
